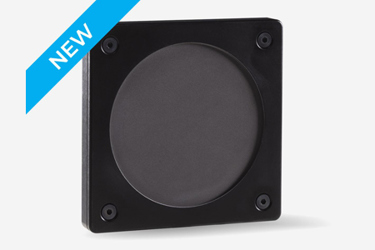

UP100 Thermal Detector
Measure laser power and single-shot energy with a versatile detector featuring high damage thresholds, faster measurements, NIST-traceable calibration, and streamlined data visualization tools.
High Performance
- Large aperture
- High damage threshold (45 kW/cm2)
Energy Mode
Measure single shot energy up to 700 J
Smart Interface
Containing all the calibration data
Versatile absorber suitable for most applications
Our H absorber offers a spectral response that is both broadband and spectrally flat, making this power detector a versatile solution that can cover most laser power measurement needs. Our proprietary manufacturing method also gives this absorber good damage thresholds, for both average power density and energy density. It has a high absorption capacity and, therefore, generates a relatively low percentage of back reflection.
Customers enjoy:
- Useful for measuring a wide range of lasers
- Low risk of damaging the equipment
- Allows fast rise time
Gain insight into your laser’s behavior
Stop wrestling with spreadsheets — let our data viewer turn raw numbers into clear insight right in your browser. Simply import your data log file from PC-Gentec-EO, and instantly visualize your laser measurements with clean graphs, detailed parameters, and useful statistics.
Why use it?
- Zoom in on any section of your data for focused analysis
- Access detailed measurement parameters and trends in seconds
- Get ready-to-use visual insights for reports or troubleshooting
- Open and compare multiple log files simultaneously
Faster measurement with XNR AnticipationTM
Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.
Why does it matter?
- Save several seconds to tens of seconds for each measurement
- Shorter operation interruption
- Faster laser output diagnostics
- Increased productivity
- No compromise on measurement accuracy
NIST-TRACEABLE CALIBRATION INCLUDED
Traceable calibration provides the ability to trace the readings of laser output measurements to known international measurement standards determined by the National Institute of Standards and Technology (NIST). This ensures that the measurements taken by the instruments are reliable and accurate.
Benefits include:
- Make valid comparisons of measurements taken by other instruments inside and outside your organization and over time
- Comply with regulations or conform to industry standards
- Avoid costly measurement mistakes in your operations
- Improve customer confidence in your laser systems
- Ensure laboratory experiment validity
- Demonstrate measurement accuracy easily with the calibration certificate we provide
Optional INTEGRA (USB or RS-232) output
When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.
Why choose it?
- The most cost-efficient solution
- Same measurement performance as our other solutions
- No compromise on interface functions and features
- Compact solution for OEM applications and field servicing
- Save money on recalibration with an all-in-one instrument
