Streaming 4x Cameras With Small Carrier Board: Fast Prototype

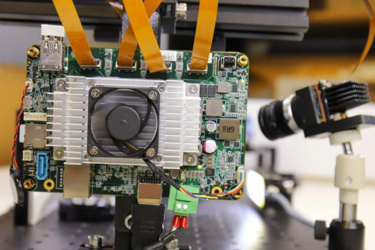

Embedded vision components are ever popular and being incorporated into a plethora of applications. What all these applications have in common us the need to pack more and more functionality into tight spaces. Often, it is also very advantageous for these systems make decisions on the edge.  To enable such systems, including the ability to prototype quickly, Teledyne FLIR has introduced the Quartet™ Embedded Solution for TX2. This customized carrier board enables easy integration of up to 4 x USB3 machine vision cameras at full bandwidth. It includes the NVidia Jetson deep learning hardware accelerator and comes pre-integrated with Teledyne FLIR’s Spinnaker® SDK. Often, it is also very advantageous for these systems to make decision on the edge especially in inspection, mobile robotics, traffic systems, and various types of unmanned vehicles.

In this very practical article, to highlight what the Quartet can enable, we describe steps taken in developing an ITS (traffic systems) inspired prototype running four simultaneous applications, three of which use deep learning:

• Application 1: License plate recognition using deep learning
• Application 2: Vehicle type categorization using deep learning
• Application 3: Vehicle color classification using deep learning
• Application 4: See through windshield (past reflection & glare)
