One-dimensional Position Sensitive Detector for Incident Light Angles Introduced by Hamamatsu Corporation

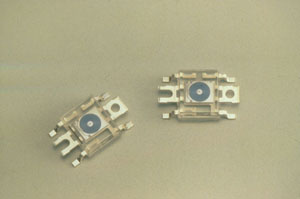

Hamamatsu Corporation introduces the S8158 circular one-dimensional position sensitive detector (PSD) designed for detecting incident light angles whose origin point is the center of the active area. The S8158 accomplishes precise detection of incident light angles through circular PSD terminals that detect the angle while a photodiode monitors the center position alignment.

Covering the spectral response range of 320 nm to 1100 nm, the S8158 achieves peak photo sensitivity of 0.55 A/W at 960 nm. The circular PSD has a dark current of 0.05 nA and a rise time of 10 ms. Active area of the S8158 is 0.54 mm on the inner diameter and 2.10 mm on the outer diameter.

The S8158 has an operating temperature of –25° to +85° C. Compact in size, the PSD measures .025 H x 7.9W x 4.1 D (mm). It is priced at $2.50 in OEM quantities and available for delivery in 6 to 8 weeks.

Hamamatsu is a leading manufacturer of devices for the generation and measurement of infrared, visible, and ultaviolet light. Its products include photodiodes, photomultiplier tubes, scientific light sources, infrared detectors, photoconductive cells, and imaging devices. The company's unique corporate philosophy stresses the advancement of photonics through extensive research, and yields products that are regarded as the state of the art. Hamamatsu products are used throughout the world in scientific, industrial, and commercial applications.

Hamamatsu Corporation, 360 Foothill Road, P.O. Box 6910, Bridgewater, NJ 08807-0910. Tel: 908-231-0960; Fax: 908-231-0982.
