InSb MWIR Camera: IRC806HS

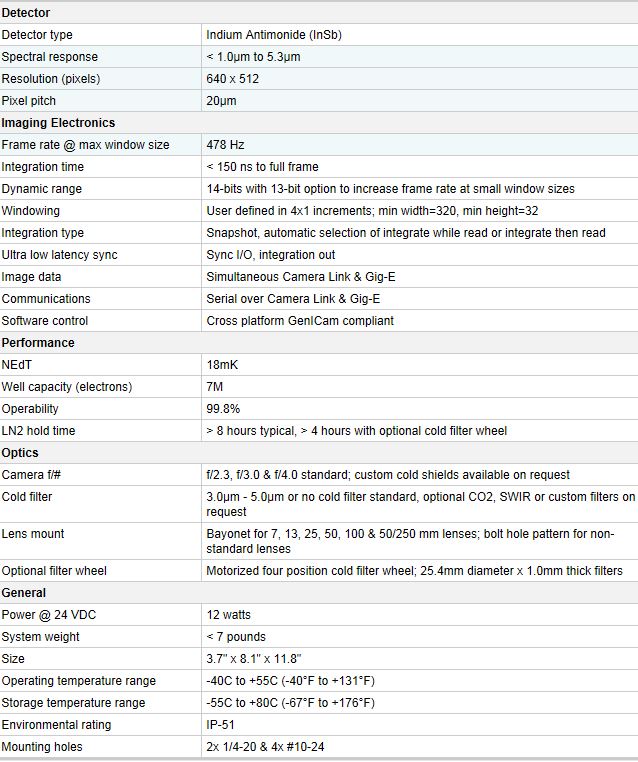

The IRC806HS in an Indium Antimonide (InSb) Mid-Wave Infrared (MWIR) camera with 640 x 512 pixel resolution. It operates at up to 478 fps (full frame), and supports sub windowing to increase its frame rate further. This 20 micron camera can change integration times on a frame-by-frame basis to capture rapidly changing scenes through super framing. Additional specifications include <1.0µm to 5.3µm spectral response, and a 20µm pixel pitch. A full list of specifications can be found below.
Like all cameras in the IRC800 family by IRCameras, the IRC806HS can be used in quality assurance, spectroscopy, target signature analysis, process analysis, long range surveillance, materials evaluation, and range phenomenology. Download the datasheet for more information.
