InSb MWIR Camera: IRC803
The IRC803 is an Indium Antimonide (InSb) Mid-Wave Infrared (MWIR) camera with a 320 x 256 pixel resolution, a 30µm pixel pitch, and a full frame rate of 478 fps.

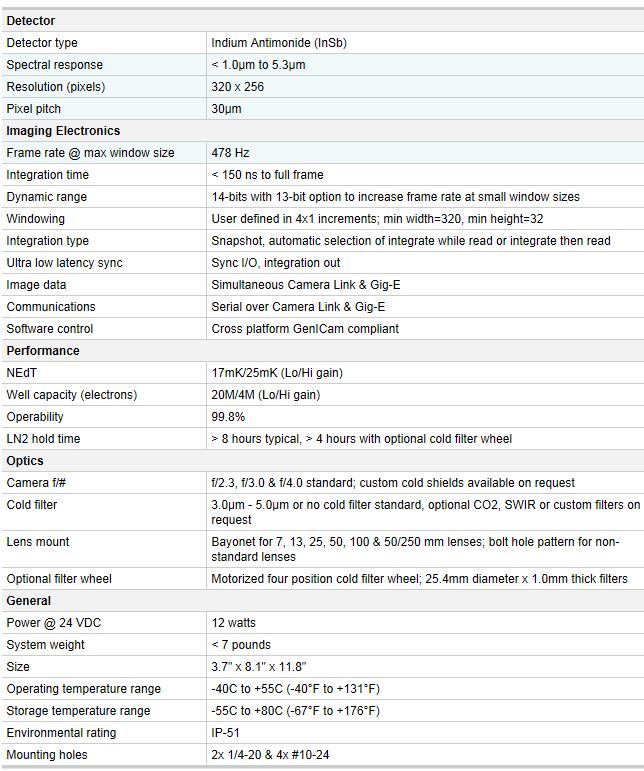

Like all infrared cameras in IRCameras IRC800 series, the IRC803 is ideal for applications involving medical imaging, target signature analysis, process analysis, spectroscopy, materials evaluation, scientific imaging, long range surveillance, range phenomenology, and quality assurance. Additionally, an optional filter wheel can be integrated to enable the simultaneous installation and the external selection of up to 4 cold filters, making the IRC803 InSb camera well suited for the analysis of sub bands between 1 and 5 microns. For more information on the IRC800 series, download the datasheet.
