Imaging Optics: High-Performance Solutions Catalog

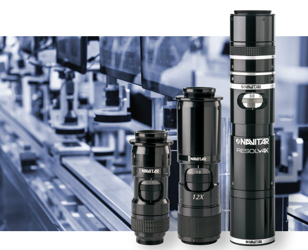

The Navitar Imaging Catalog offers a thorough overview of imaging optics and related products engineered for high-performance machine vision, microscopy, and life science applications. Navitar’s portfolio spans from adjustable zoom lenses (such as the 7000-2 and Resolv4K series) to high-resolution fixed and modular systems, telecentric lenses, and advanced microscopy objectives. The catalog places strong emphasis on lens-sensor integration, utilizing active alignment for precision camera modules that maximize sensor capabilities—addressing finer pixel sizes and larger sensors for current imaging demands.

Product lines include motorized systems with robust Hall Effect sensor integration for enhanced automation, a variety of illumination solutions (including fiber optic, LED, and coaxial lighting), and an expansive selection of large-format and SWIR lenses targeting both visible and infrared imaging needs. Each lens solution is optimized for specific uses like factory automation, electronic inspection, semiconductor manufacturing, and scientific analysis. Modular components—such as tube lenses, adapters, and accessories—further allow for flexible, application-specific system design.

Navitar’s cameras (including Pixelink series) feature high-speed interfaces (USB3, 10GigE), high frame rates, and resolutions up to 24MP. Their software SDK and Pixelink Capture application provide full camera control and integration for OEMs and researchers. The catalog serves as a technical resource, with detailed specifications, system diagrams, and quick reference guides enabling tailored imaging solutions for both standard and custom requirements in advanced imaging industries.
