FLIR Pan/Tilt Units

Source: FLIR Systems, Inc - OEM Cores and Components

FLIR offers a variety of pan/tilt units (PTUs) for top-mounted and side mounted payloads ranging from 5 to 70 lbs. Among these are a series of miniature computer controlled PTUs with programmability of speed, acceleration, power, and other parameters.

Request Information

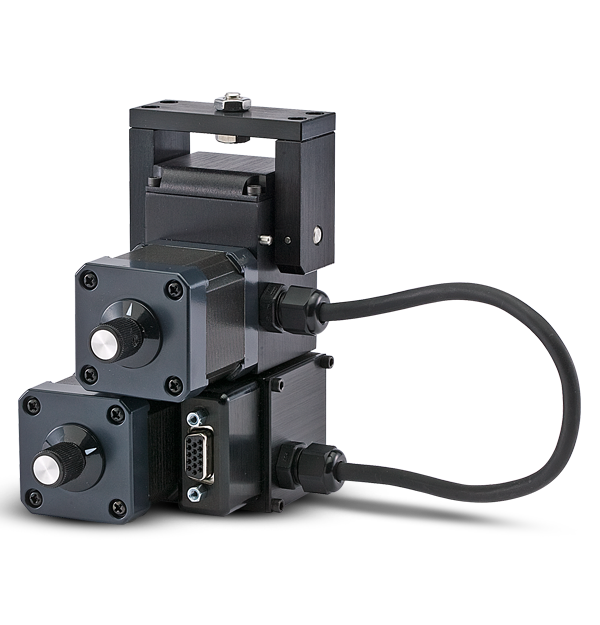

FLIR PTU E46
The PTU-E46 family of miniature pan/tilt units provide fast, precise positioning in an extremely small and lightweight package. They are fully computer-controlled and offer programmability of speed, acceleration, power, and other parameters. The included controller, with built-in RS-232, Ethernet, and RS-485 interfaces, handles precise kinematic motion control according to user-set parameters.


FLIR PTU-5
The FLIR PTU-5 stands at six inches tall when fully integrated and can hold up to five pounds on its top bracket. Even with its small size the PTU-5 is more accurate than many other systems thanks to the absolute encoders used on the drive axes. The PTU-5 can be used anywhere, even outdoors, due to a fully sealed and weatherproof design.

FLIR PTU-D100E
The PTU-D100 E-series supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting with a 15 lb. maximum payload weight. These units have been proven in a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments.

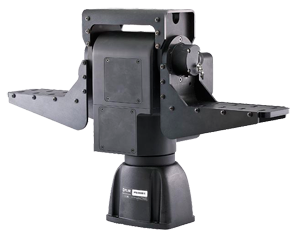

FLIR PTU-D300E
The PTU-D300 E-series supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting with a 35 lb. maximum payload weight. These units have been proven in a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments.

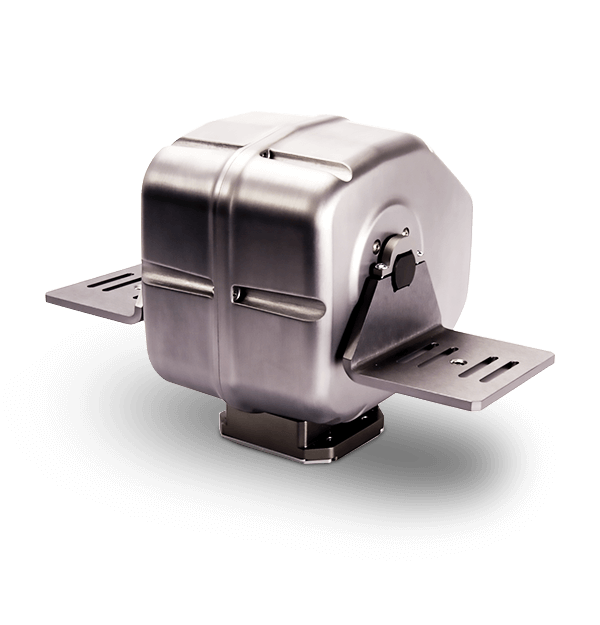

FLIR PTU-D47
The PTU-D47 computer-controlled pan/tilt is compact, lightweight, versatile, and field-proven across hundreds of applications with payloads up to 12 pounds. It features a fully-integrated, mil-style controller with a single weatherized connection for power and pan/tilt control, as well as optional payload signal management. The side-mount bracket allows positioning payloads for a lower center-of-gravity, and for mounting multiple payloads (top and side).

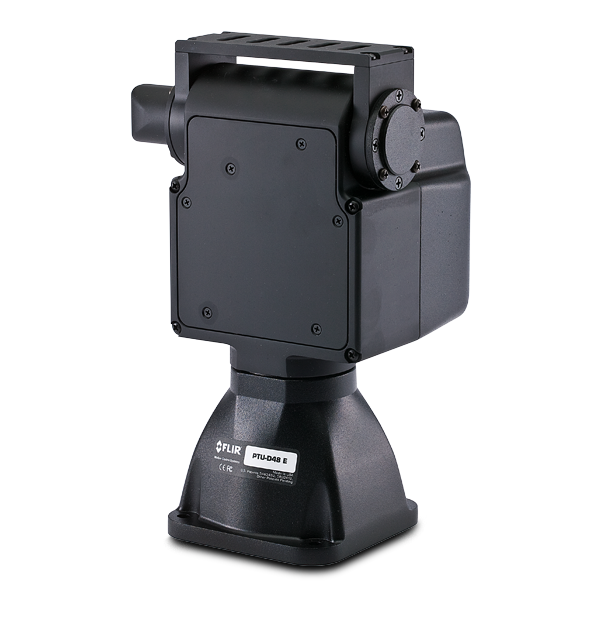

FLIR PTU-D48E
The PTU-D48 E-series supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting. It is ideal for a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments. It is designed for high duty cycles and reliable operation 24/7 in harsh all-weather environments.

Visit the FLIR site for more features and specifications on the available models.
