DIAS PYROSPOT Series 54 And 56 – New Types Expand The Range Of Products

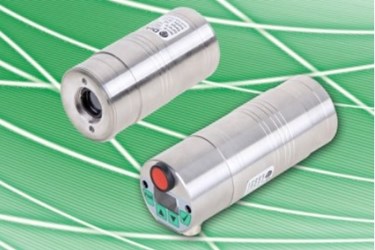

The DIAS Infrared PYROSPOT series 54 and 56 fixed pyrometers with IP65 stainless steel housings provide precise and fast temperature measurements in the near infrared range from 200 °C to 3000 °C. Now the series 54 and 56 include two new pyrometer types in the mid-infrared wavelength range around 5 µm, with a temperature measurement range from 100 °C to 2500 °C. The new models are specifically for application in the glass industry. Additionally, models exist for general applications in the long-wave range from 8 µm to 14 µm for measurements on non-metallic surfaces and coated materials between –40 °C and 1000 °C.

The devices have fast response times of 10 ms and a small measurement field diameter as low as 2.6 mm. All devices have an analog 0/4 to 20 mA temperature linear output, a galvanically isolated RS-485 interface with Modbus RTU protocol, and a maximum/minimum measurement storage. In addition, a switching output provides easy implementation into process measurement and control. The series 56 pyrometers incorporate a display for measured values and a keypad for parameter adjustment on the back of the device. An extensive accessory range and attractive prices are further features of the successful PYROSPOT series 54 and 56.

More information about the DIAS PYROSPOT series 54 and 56 pyrometers can be found at: http://www.dias-infrared.com/products/pyrometers/pyrospot-series-56

About DIAS Infrared
DIAS Infrared, GmbH, founded in 1992, is a leader in the development and manufacture of high-quality infrared cameras, infrared line cameras, pyrometers, black bodies and infrared detectors for industrial temperature measurements. DIAS Infrared Corp is the North American subsidiary for sales and service, located in Warwick, NY.
