Beam Samplers For The Perfect Beam Copy

Diffractive Optics for Online Measurements

When monitoring laser beams, their measurement must be carried out during the laser process without affecting the processing beam. It is also imperative that the measurement beam is absolutely identical to the processing beam.

One excellent option is the use of a diffractive beam sampler because the beam that is coupled out is a perfect copy of the laser beam to be measured. Not only that but there are also at least two additional beams available that allow power measurements and beam profile measurements to be carried out simultaneously.

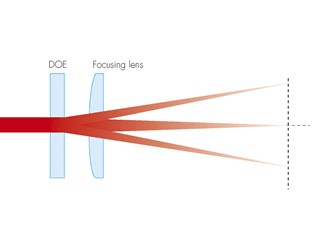

The diffractive optical element, DOE, offered from LASER COMPONENTS, is placed in transmission into the collimated beam. Approximately 99% of the main beam is transmitted through the DOE without changing; the other 1% of the beam intensity is split into higher orders for measurement purposes. Thus, a part of the power is emitted at ±15°, for example; other copies of the main beam can be found at even lower power in the other orders (±30°). The intensity of all partial beams do not depend on the polarization of the laser.

There are quite a few standard elements available, as well as designs according to customer specifications for the wavelengths between 193 nm and 10.6 µm at attractive prices.
