Assembled V38 System Technical Product Report

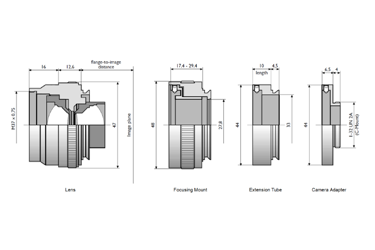

The compact and robust V38-Mount System consists of Schneider-Kreuznach lenses in a special iris mount, focusing mounts, extension tubes and camera adapters. It is the best choice for larger image circles and flexible flange-to-image distances.

The system can be adapted to many different cameras for industrial and scientific applications. For assembly in reverse position; special adapters are available which can be screwed into the filter thread of the lens.

The V38-Mount System provides a uniform interface with three lock-screws that engage into a groove. This guarantees a stable and durable connection and makes it possible to use multiple combinations of the individual components.
