TECHNOLOGIES TO SEE AT SPIE PHOTONICS WEST 2018

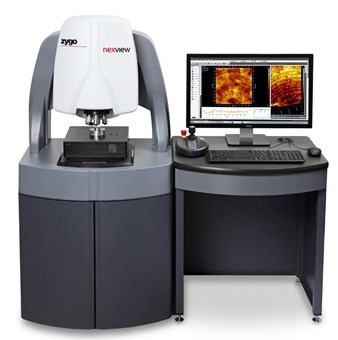

Nexview™ 3D Optical Surface Profiler

The Nexview™ 3D optical profiler microscope stands out amongst competitive products by its ability to measure the topography of virtually any surface, irrespective of roughness, large steps and segments, thin films, steep slopes, with feature heights ranging from < 1 nm up to 20000 µm. It does all this in 3D, without contact, and provides the best qualities of other profiling technologies (stylus, confocal, focus scanning) without their limitations.

• Space, Satellite, and Astronomy Filters and Coatings
• Short-Exposure, High-Power Sensors With Industrial Communications Protocol: Helios Plus
• Color Filter Glass: UL365S UV Band-Pass Filter

• 640 x 512 Resolution High Speed IR Camera: FLIR X6900sc

  FLIR’s X6900sc series cameras are full frame MWIR and LWIR 640 x 512 resolution thermal cameras for use in high-speed R&D and science applications. The infrared cameras are designed to produce thermal data at up to 1,004 frames per second at full resolution, and can be sub-windowed for even faster rates.   With multiple simultaneous digital data outputs over GigE, CameraLink and CoaxPress in addition to the ability of burst recording to on-camera RAM for up to 26 seconds,  there is never a worry of missing critical frames of data.

• Application Systems

  OptoSigma offers a wide range of application systems that includes microscope units, alignment systems, interferometers, bio-photonics, and laser processing systems. These application systems are designed for many specific applications including polarization measurements, vacuum and oven measurements, and glass and film inspections.

• Near-Eye Display Solutions

  Optics Blazers manufactures Near-Eye Display combiners and other components for optimized display performance and see-through properties. With an integrated manufacturing chain, this company can deliver single reflective surface, multiple reflective surface, free-form, or diffractive combiners. Optics Blazers’ solutions are developed with cost and scalability in mind to serve the competitive consumer electronics market.

• Linear Variable VIS NIR Bandpass Filters For Hyperspectral Imaging

  Hyperspectral imaging (HSI) is used for many applications including satellite imaging and air reconnaissance. HSI is usually executed with bulky hyperspectral-imaging cameras that are sensitive to misalignment, very expensive, and use prisms or gratings as dispersive elements. An alternative method of HSI is the combination of linear variable bandpass filters (LVBPFs) with silicon detectors. This allows for very compact, robust, and affordable HSI detectors that offer several advantages over conventional approaches.

• Compact, All-In-One LED Luminaire Measurement System: FluxGage

  The FluxGage is Ophir’s new compact measuring system for LED Luminaires that measures their total flux, color (CCT, CRI, Duv, chromaticity), and flicker. The system measures the total flux using solar panels instead of an integrating sphere, delivering the same functionality in one-third the size.

• MHK C-Shape Stainless Steel Mirror Holders

  OptoSigma provides MHK C-shaped stainless steel mirror holders designed for 12.7 mm dichroic mirrors and beamsplitters. The holders feature high-resolution adjustment, and a knob-less design that is suitable for system integration.
