Digital High-Speed Phantom® v-Series Camera Family

Source: Vision Research, Inc.

Digital High-Speed Phantom® v-Series Camera Family

The Phantom v-Series of digital high-speed cameras are designed to eliminate blur, see the smallest of details, and keep moving targets in-frame as long as possible for the longest recording time for an event.

Request Information

The Phantom v341 provides a 4 megapixel sensor and almost 3 gigapixels/second throughput, delivering full-resolution frame rates of 800 fps, and 2 megapixel 1920 x 1080 HD-resolution frame rates of 1440 fps. The camera also includes a 2560 x 1600 pixel CMOS custom-designed CMOS sensor and shutter speeds down to 1 microsecond.

The Phantom v641 provides a 4 megapixel sensor and greater than 6 gigapixels/second throughput, delivering full-resolution frame rates of 1450 fps, and 1920 x 1080 HD-resolution frame rates of 2560 fps. The camera also includes a 2560 x 1600 pixel CMOS custom-designed CMOS sensor and shutter speeds down to 1 microsecond.

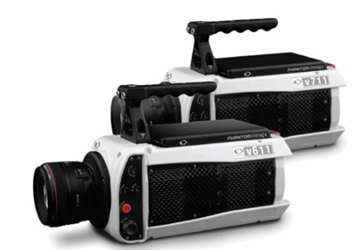

The Phantom v611 and v711 deliver images at 1280 x 720 HD resolution. The cameras also include a 1280 x 800 pixel CMOS custom-designed CMOS sensor and shutter speeds down to 1 microsecond. With a pixel size of 20 microns and improved quantum efficiency, these cameras are ideal for the most challenging lighting conditions.

For more information on the different models, parameters, and specifications of the v-Series cameras, download the individual datasheets above.
