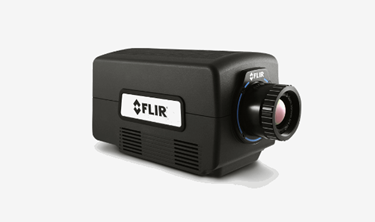

Compact HD MWIR InSb Cameras: FLIR A8200sc And FLIR A8300sc

Source: FLIR Systems, Inc - Research & Science

 Compact HD MWIR InSb Cameras: FLIR A8200sc And FLIR A8300sc

FLIR offers the FLIR A8200sc and FLIR A8300sc high-sensitivity MWIR cameras designed to produce low-noise HD thermal images for electronics inspection, aerial thermal mapping, non-destructive material testing, and industrial R&D applications. The A8200sc produces crisp, 1.0 megapixel (1024 x 1024) thermal images, while the FLIR A8300sc produces 921,600 pixel (1280 x 720) images, both with very low noise to capture the finest image details.

Request Information

The FLIR A8200sc and FLIR A8300sc cameras stream data over Gigabit Ethernet and CoaXPress to a PC for live image viewing and recording. Full user control over integration times, synchronization inputs, and window sizes is available. The snapshot mode allows for capture of every pixel from a scene simultaneously.

FLIR A8200sc features include:

  • Resolution: 1.0 Megapixel (1024 x 1024)
  • Detector Type: FLIR indium antimonide (InSb)
  • Spectral Range: 3.0 – 5.0 µm
  • Well Capacity: 2.0 M electrons
  • Zoom: Video Zoom is Auto Selected; Full Res = 1x, 1/4 Res = 2x

FLIR A8300sc features include:

  • Resolution: 921,600 pixel (1280 x 720)
  • Detector Type: FLIR indium antimonide (InSb)
  • Spectral Range: 3.0 – 5.0 µm
  • Well Capacity: 5.9 M electrons
  • Zoom: Video Zoom is Auto Selected; Full Res = 1x, 1/4 Res = 2x

Visit the FLIR A8200sc and FLIR A8300sc pages for more features and information. Click here for a side-by-side comparison.
